PLANUM LOW PITCH CLAY ROOF TILE

The Planum low pitch roof tile creates a stunning roof, with its simplicity and elegant design providing superior aesthetics to any roofscape.

The Planum roof tiles can be used on pitches as low as 10 degrees thanks to the innovative design and the highly engineered manufacturing process at the Spanish factory. As one of the leading low pitch roof tiles on the market the Planum tile comes in a range of 12 colours.

All H-Selection tiles are manufactured using high quality alluvial clay and fired at high temperatures to give strength and create a tile with low absorption qualities, making them the perfect choice to protect your home from the wind and rain. Recent improvements include the introduction of manganese to the red clay which changes the base colour to brown. This means the darker colours (black, brown, grey) have a much richer appearance but also provide better integration into the cuts that are made to fit your roof. La Escandella uses precision engineering techniques to produce what is arguably the biggest collection of premium quality clay roof tiles in the market today.

We hold high levels of stock at all times to make sure our customers can receive their La Escandella roof tiles with minimal delay. Backed by guarantees of up to 100 years, these tiles tick all the boxes for both new build and renovation projects.

If you need any help choosing the right La Escandella tile or accessory, simply contact our team. We’ll be happy to help.

Planum Low Pitch Clay Roof Tile
100 year guarantee 200

DATA SHEET

Dimensions

a 444 mm

b 280 mm

Minimum Pitch

10°(100mm Headlap)

20° (75mm Headlap)

Roofs below 20°should use a 180g/m² Air Permable underlay and each tile must be clipped. Please refer to our technical department for guidance or our Roof Calculator for advice

Pieces per m2

11.5 - 12.3

Individual tile weight

3.5 Kg

Batten Gauge

369mm at 75mm Headlap

344mm at 100mm Headlap

​Cover Width

236mm (+2/-2mm)

Weight per m2 laid

40.25 - 43.05 kg / m2

gold badge image

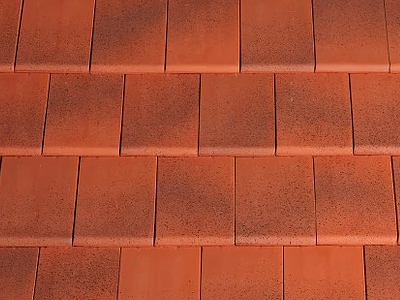

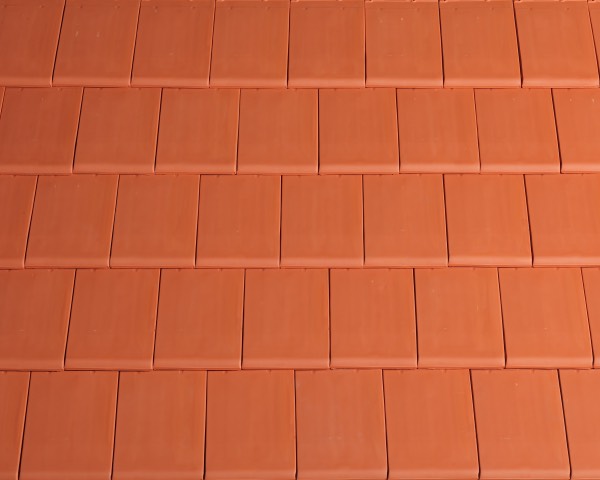

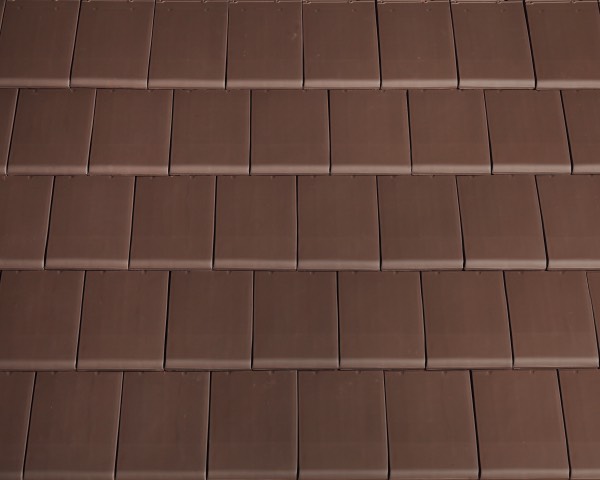

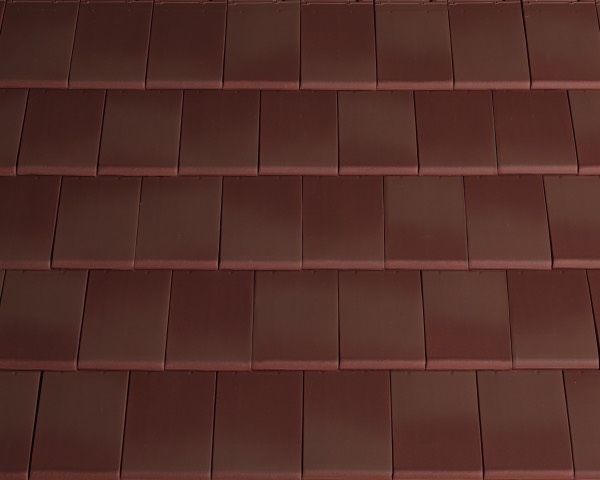

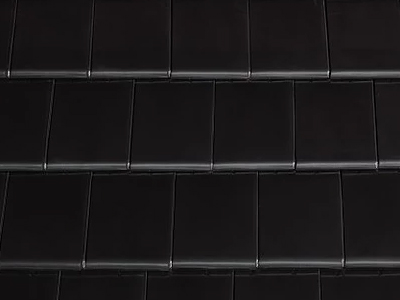

PLANUM CLAY TILE COLOUR RANGE

The Planum is available currently in 12 colours. The range of colours allows you to find the perfect match for your project.



View the Case Studies

Stoneleaf Tiles are supplied around the UK

High definition on each piece

Individual curing of each tile thanks to support in H cassettes. Excellent flatness with no contact points.

Excellent flatness

It provides a perfect definition on each piece, made with gypsum moulds, providing a much finer texture.

Low absorption

Higher resistance to ice and mould formation.

Lifetime warranty

Our 100 year guarantee gives you peace of mind and demonstrates the quality of our manufacturing process.
